SCION FR-S (12-21)

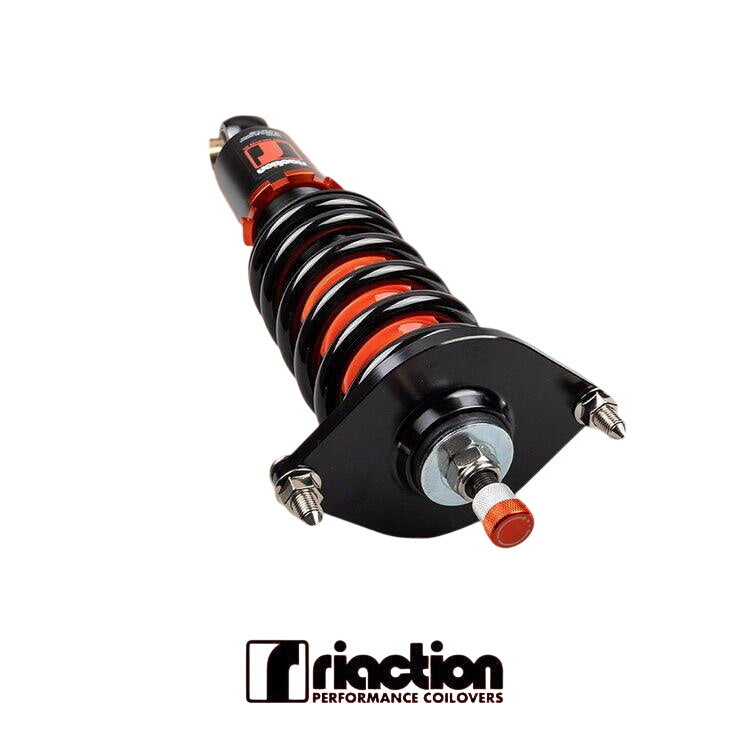

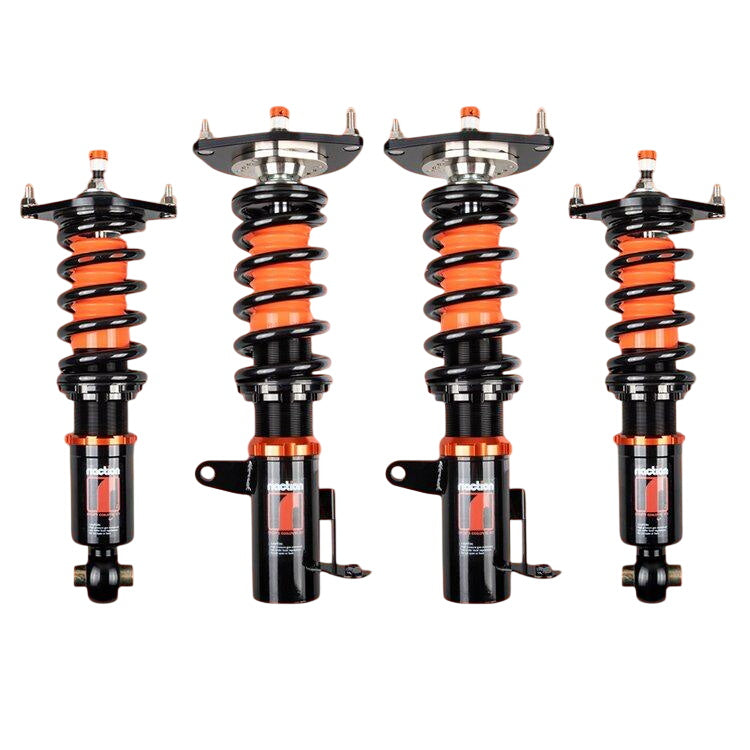

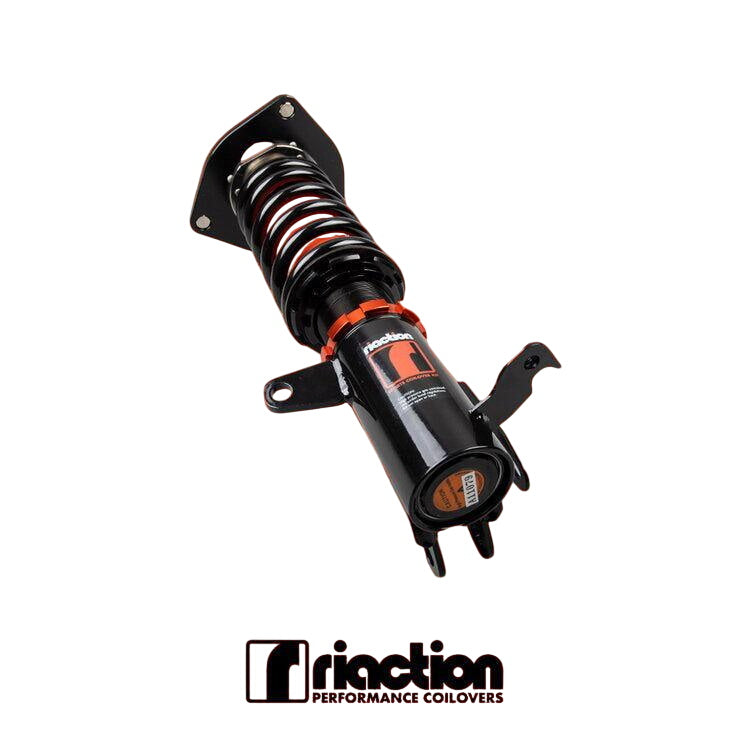

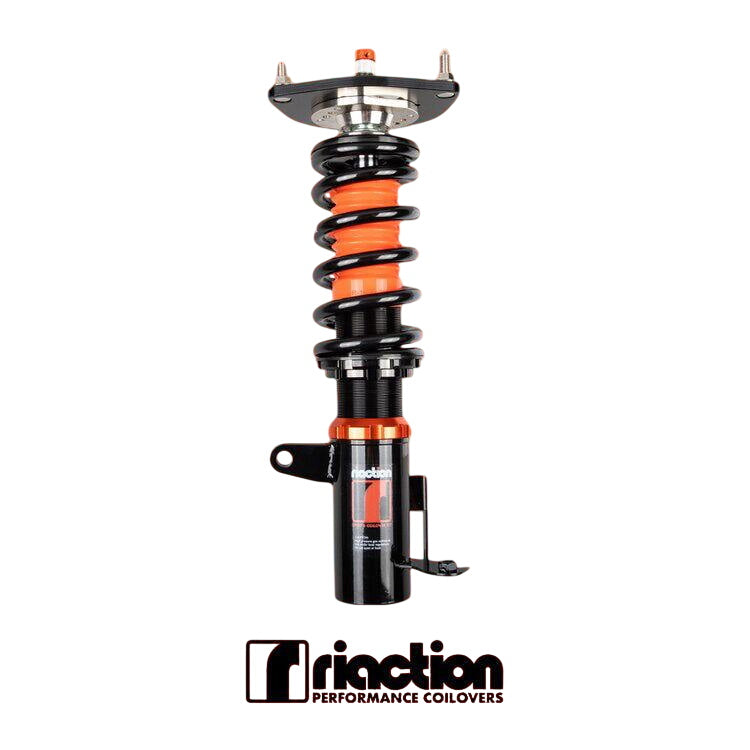

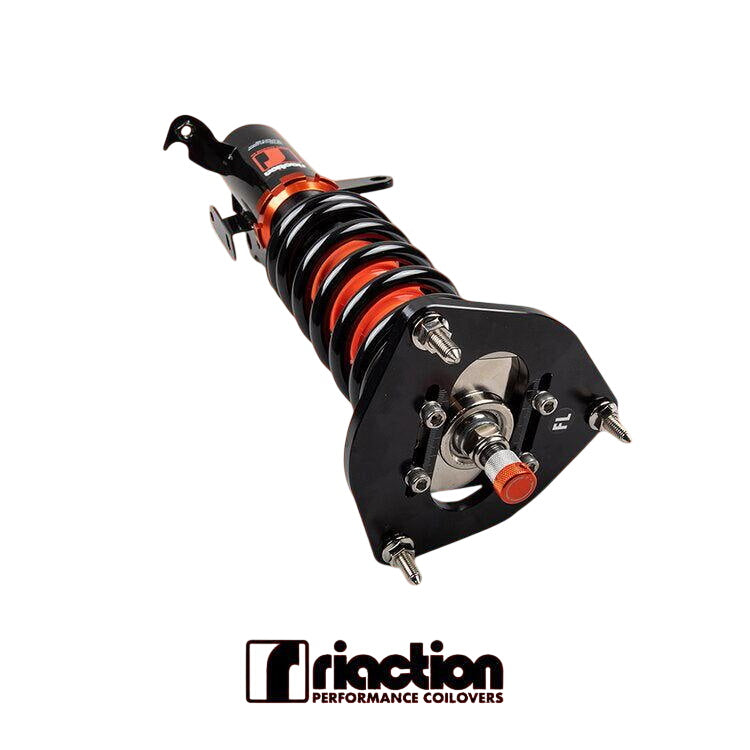

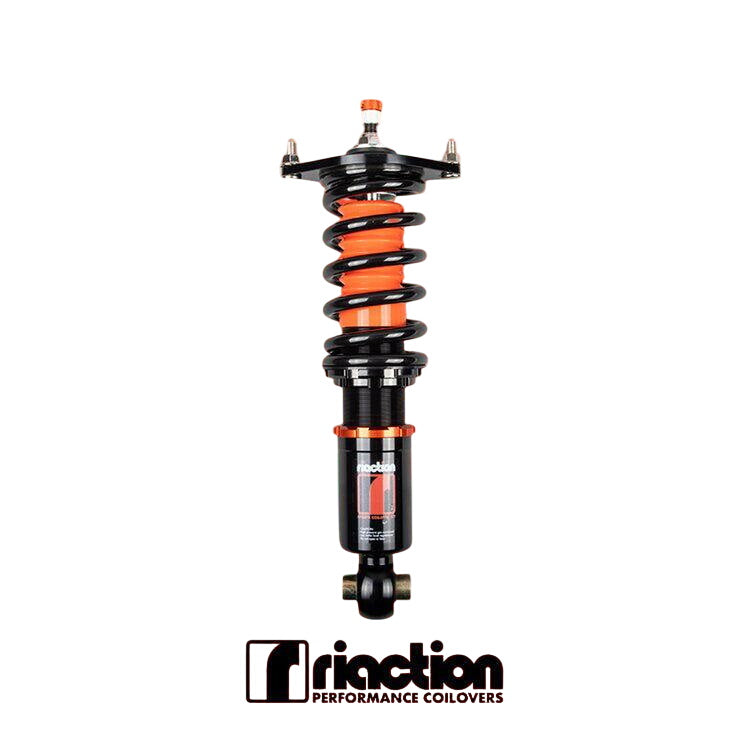

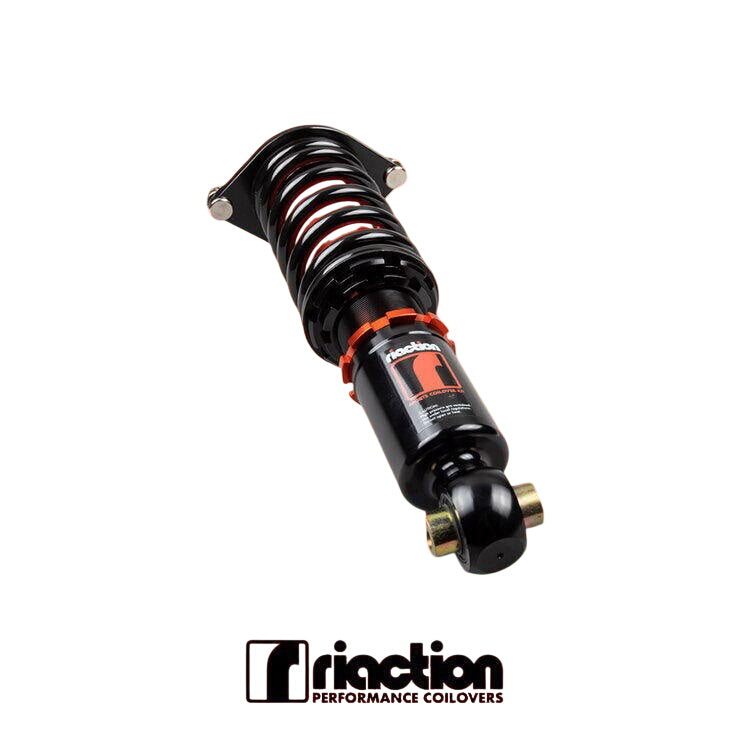

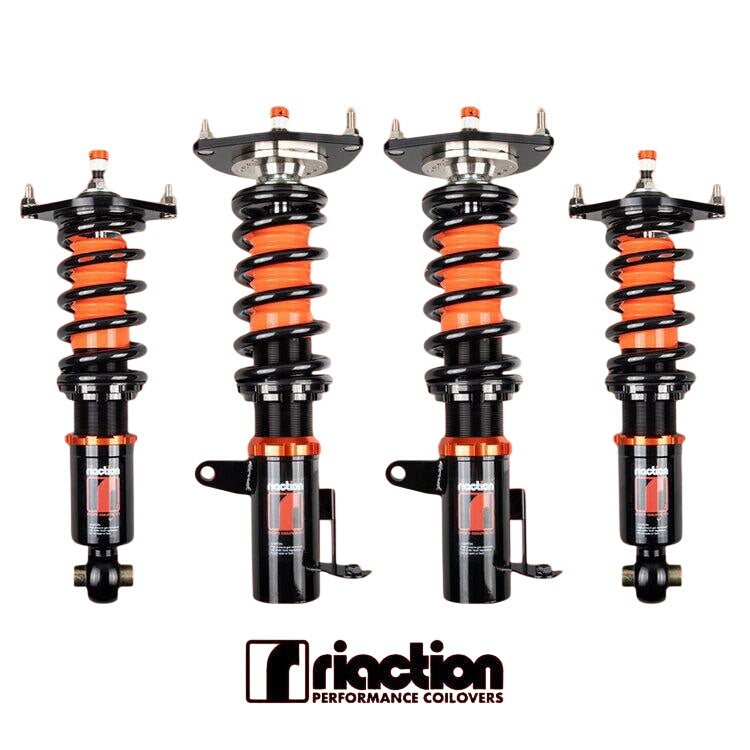

The Riaction Sports Coilover System for the 2013–2016 Scion FR-S provides adjustable suspension control for drivers looking to improve handling response, lower ride height, and maintain everyday street comfort. Built for the FR-S's lightweight, rear-wheel-drive chassis, this suspension system allows drivers to fine-tune vehicle stance and damping characteristics for daily driving, winding roads, and spirited cornering.

The Scion FR-S is known for its balanced handling and responsive chassis, making suspension tuning an important part of its driving characteristics. Riaction Sports Coilovers feature 32 levels of damping adjustment, allowing drivers to modify suspension firmness to better manage body roll, braking dive, and weight transfer during cornering. Full-length ride height adjustment provides flexibility for achieving a lower stance while maintaining usable suspension travel when properly configured.

The monotube damper design incorporates a 44mm high-flow CNC 6061 aluminum piston, multi-thickness valving shims, and a low-gas-pressure internal system to provide consistent damping response. Combined with 7.5W compounded suspension fluid, these components help regulate suspension movement and maintain predictable handling over varying road surfaces.

Supplied with 8K front and 6K rear spring rates, the Riaction Sports Coilover kit uses SAE9254 cold-wound springs to provide controlled suspension support. Seamless 52mm electroplated carbon steel shock bodies, CNC-machined aluminum internal components, and polyurethane oil seals contribute to durability and consistent operation during regular street use.

Each Riaction Sports Coilover kit features fully rebuildable dampers and includes a 2-year factory warranty against manufacturing defects.

Sports Coilover Features & Specifications

• Full-Length Ride Height Adjustment

• 32 Levels of Damping Adjustment

• Monotube Damper Design

• Seamless 52mm Electroplated Carbon Steel Shock Body

• 20mm Piston Rod for MacPherson Suspension Applications

• 14mm Piston Rod for Non-MacPherson Suspension Applications

• 44mm High-Flow CNC 6061 Aluminum Piston

• Lightweight CNC 6061 Aluminum Floating Piston

• Polyurethane Oil Seals

• SAE9254 Cold-Wound Performance Springs

• Multi-Thickness Valving Shims

• Low-Gas-Pressure Internal Design

• 7.5W Compounded Suspension Fluid

• Fully Rebuildable Damper Construction

• 2-Year Factory Warranty

Factory Spring Rates

• Front: 8K

• Rear: 6K

Vehicle Fitment

• Make: Scion

• Model: FR-S

• Chassis: ZN6

• Years: 2013–2016

• Drivetrain: Rear-Wheel Drive
